S6W3W3N Winder Staircase

GoStairs Online > Winder Staircases > Double Winder Staircases > S6W3W3N Winder Staircase

Ordering your staircase online

If you require any assistance when ordering your staircase you can contact us on 01952 608853.

Trade Range S6W3W3N Winder Staircase R/H No Handrails
Trade Range S6W3W3N Winder Staircase R/H No Handrails Ref: TS6W3W3N-RH
Trade range winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "A" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
Price: £549.00 (Excluding VAT at 20%)


Floor to Floor height 2500 -2600mm

Select Rise - A = 2229mm B = 1780mm C = 900mm


Floor to Floor height 2600 - 2700mm

Select Rise - A = 2283mm B = 1780mm C = 900mm


Floor to Floor Height 2700 - 2800mm

Select Rise - A = 2331mm B = 1780mm C = 900mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced Plywood

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

Express Order Service
Delivery within 2 Weeks* Subject to holidays Eg Christmas & August.

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing


Quantity:

Trade Range S6W3W3N Winder Staircase L/H No Handrails
Trade Range S6W3W3N Winder Staircase L/H No Handrails Ref: TS6W3W3N-LH
Trade range winder staircase this 13 riser flight winds to the left, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "A" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
Price: £549.00 (Excluding VAT at 20%)


Floor to Floor height 2500 -2600mm

Select Rise - A = 2229mm B = 1780mm C = 900mm


Floor to Floor height 2600 - 2700mm

Select Rise - A = 2283mm B = 1780mm C = 900mm


Floor to Floor Height 2700 - 2800mm

Select Rise - A = 2331mm B = 1780mm C = 900mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced Plywood

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

Express Order Service
Delivery within 2 Weeks* Subject to holidays Eg Christmas & August.

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing


Quantity:

Trade Range S6W3W3N Winder Staircase R/H With Handrails
Trade Range S6W3W3N Winder Staircase R/H With Handrails Ref: TS6W3W3N-RH-HR
Trade range winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Newel Posts - 90 x 90mm Pine Square
Spindles - 32mm Pine Square
Handrail - Pine SHR Profile
Baserail - Pine SBR Profile

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less. The Handrail is over 900mm high.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.


Select from the Rise heights given and note any changes to the length of the "A" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
Price: £659.00 (Excluding VAT at 20%)


Floor to Floor height 2500 -2600mm

Select Rise - A = 2229mm B = 1780mm C = 900mm


Floor to Floor height 2600 - 2700mm

Select Rise - A = 2283mm B = 1780mm C = 900mm


Floor to Floor Height 2700 - 2800mm

Select Rise - A = 2331mm B = 1780mm C = 900mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced Plywood

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

Express Order Service
Delivery within 2 Weeks* Subject to holidays Eg Christmas & August.

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing


Upgrade to Turned Newels and Spindles

Spindle Choice- ( Relevent when upgrading to Turned Newels etc)


Quantity:

Trade Range S6W3W3N Winder Staircase L/H With Handrails
Trade Range S6W3W3N Winder Staircase L/H With Handrails Ref: TS6W3W3N-LH-HR
Trade range winder staircase this 13 riser flight winds to the left, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Newel Posts - 90 x 90mm Pine Square
Spindles - 32mm Pine Square
Handrail - Pine SHR Profile
Baserail - Pine SBR Profile

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less. The Handrail is over 900mm high.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.


Select from the Rise heights given and note any changes to the length of the "A" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
Price: £659.00 (Excluding VAT at 20%)


Floor to Floor height 2500 -2600mm

Select Rise - A = 2229mm B = 1780mm C = 900mm


Floor to Floor height 2600 - 2700mm

Select Rise - A = 2283mm B = 1780mm C = 900mm


Floor to Floor Height 2700 - 2800mm

Select Rise - A = 2331mm B = 1780mm C = 900mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced Plywood

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

Express Order Service
Delivery within 2 Weeks* Subject to holidays Eg Christmas & August.

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing


Upgrade to Turned Newels and Spindles

Spindle Choice- ( Relevent when upgrading to Turned Newels etc)


Quantity:

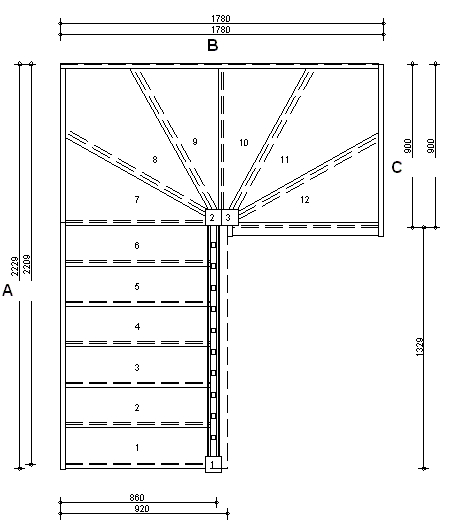

S6W3W3N Right Hand

S6W3W3N Right Hand

This shows the staircase winding to the right with handrails

S6W3W3N Left Hand

S6W3W3N Left Hand

This shows the staircase winding to the left with handrails

What to Do ?

Tick the box that your floor to floor height falls in between and then select your floor to floor height from the drop down menu.

Delivery Charges

Currently for online purchases we are only offering delivery for Mainland England and Wales.
The cost of a Staircase Delivery is £100.00 + vat

The prices offer on the website offer huge savings for buying online compared to buying through normal processes.

Our Workshop Facilities

Take a look at our Workshop

We use the latest in CNC technology and have one of the most advanced staircase production facilities in the country.

What is Engineered Pine ?

What is Engineered Pine ?

Engineered Pine is secions of Pine glued together to form a wider section.

Stability - Engineered Pine offers greater stability than wide boards.

Environment - Engineered Pine is better for the environment Our engineered pine comes from managed forests and because smaller sections of timber are used the result is less waste.

Why ? - When it comes to entry level softwood staircases the lowest cost material is Whitewood, whitewood is a fairly soft timber and will usualy have fairly large knots is prone to Shakes and Sap pockets and isnt the best when it comes to stability, all this coupled with the fact that the White wood doesnt match with Pine stairparts is why we have invested in Engineered Pine.
Engineered pine has been used in the Pine furniture industry for many years now and is a proven product.

Price - With our volume buying power and optimimum sized panels we are able to offer staircases made from quality materials at the lowest prices.

Life span - We recommend upgrading your Treads from MDF to Engineered pine this will increase the life time of your staircase.

Not Quite what you are looking for ?

If the size of what we have available to order online isnt to your requirments and you need something a liitle more bespoke or you would like your staircase in something like Oak contact us with your requirments.

Phone 01952 608853
Fax 01952 228679

Email - sales@stairplan.com

For More information on the stairs we can offer visit Stairplan.com

Winder Staircases

Winder Staircases

Stairplan has always been known for producing quality staircases the Tradestairs.com website enables you to order quality staircases online at price levels usually only seen by large volume buyers.

The Staircase shown is a double winder staircase in the following specification.

Strings - 32mm Engineered Pine
Treads - 22mm Engineered Pine
Risers - Pine Faced Plywood
Handrail - Pine SHR Profile
Newel Posts - Pine 90mm Turned
Newel Cap - Pine Ball

The Bottom step is a Curtail entry Step

The Spindles are not in place in this picture.
