S8W31N Winder Staircase

Ordering your staircase online

If you require any assistance when ordering your staircase you can contact us on 01952 216000.

Trade Range S8W31N Winder Staircase R/H No Handrails Ref: TS8W31N-RH
Trade range winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "A" and "B" dimensions.

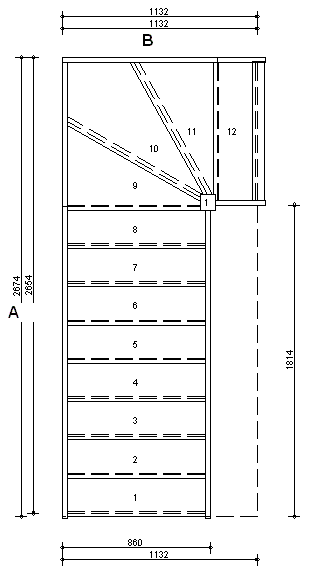

The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
Price: £449.00 (Excluding VAT at 17.5%)

Floor to Floor height 2500 -2600mm

Select Rise - A = 2674mm B = 1132mm

Floor to Floor height 2600 - 2700mm

Select Rise - A = 2746mm B = 1141mm

Floor to Floor Height 2700 - 2800mm

Select Rise - A = 2810mm B = 1149mm

Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced Plywood

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

Express Order Service
Delivery within 2 Weeks* Subject to holidays Eg Christmas & August.

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing

Quantity:

Trade Range S8W31N Winder Staircase R/H With Handrails Ref: TS8W31N-RH-HR
Trade range winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Newel Posts - 90 x 90mm Pine Square
Spindles - 32mm Pine Square
Handrail - Pine SHR Profile
Baserail - Pine SBR Profile

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less. The Handrail is over 900mm high.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Select from the Rise heights given and note any changes to the length of the "A" and "B" dimensions.

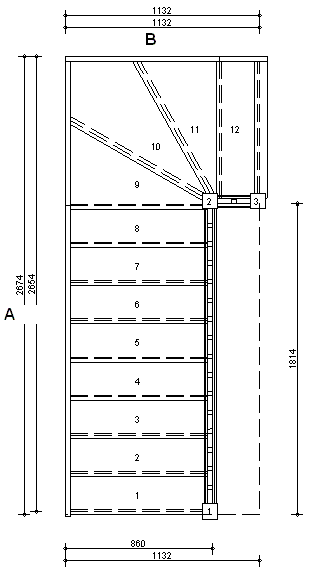

The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
Price: £549.00 (Excluding VAT at 17.5%)

Floor to Floor height 2500 -2600mm

Select Rise - A = 2674mm B = 1132mm

Floor to Floor height 2600 - 2700mm

Select Rise - A = 2746mm B = 1141mm

Floor to Floor Height 2700 - 2800mm

Select Rise - A = 2810mm B = 1149mm

Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced Plywood

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

Express Order Service
Delivery within 2 Weeks* Subject to holidays Eg Christmas & August.

Confirmation drawing

Upgrade to Turned Newels and Spindles

Spindle Choice- ( Relevent when upgrading to Turned Newels etc)

Bullnose Entry Step - R/H

Quantity:

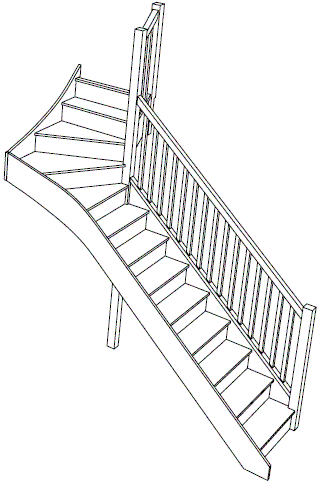

S8W31N Winder Staircase Right Handed

The Picture shows a S8W31N staircase Right handed .

(Shown with handrails)

What to Do ?

Tick the box that your floor to floor height falls in between and then select your floor to floor height from the drop down menu.

Delivery Charges

Currently for online purchases we are only offering delivery for Mainland England and Wales.
The cost of a Staircase Delivery is £100.00 + vat

The prices offer on the website offer huge savings for buying online compared to buying through normal processes.

To see some of the staircases in production go to - Stairplan.co.uk - Winder Staircases

Our Workshop Facilities

Take a look at our Workshop

We use the latest in CNC technology and have one of the most advanced staircase production facilities in the country.

What is Engineered Pine ?

Engineered Pine is secions of Pine glued together to form a wider section.

Stability - Engineered Pine offers greater stability than wide boards.

Environment - Engineered Pine is better for the environment Our engineered pine comes from managed forests and because smaller sections of timber are used the result is less waste.

Why ? - When it comes to entry level softwood staircases the lowest cost material is Whitewood, whitewood is a fairly soft timber and will usualy have fairly large knots is prone to Shakes and Sap pockets and isnt the best when it comes to stability, all this coupled with the fact that the White wood doesnt match with Pine stairparts is why we have invested in Engineered Pine.
Engineered pine has been used in the Pine furniture industry for many years now and is a proven product.

Price - With our volume buying power and optimimum sized panels we are able to offer staircases made from quality materials at the lowest prices.

Life span - We recommend upgrading your Treads from MDF to Engineered pine this will increase the life time of your staircase.

Bullnose entry step

The optional bullnose entry step detail.

Not Quite what you are looking for ?

If the size of what we have available to order online isnt to your requirments and you need something a liitle more bespoke or you would like your staircase in something like Oak contact us with your requirments.

Phone 01952 216000
Fax 011952 216021

Email - sales@stairplan.com

For More information on the stairs we can offer visit Stairplan.com
